Description

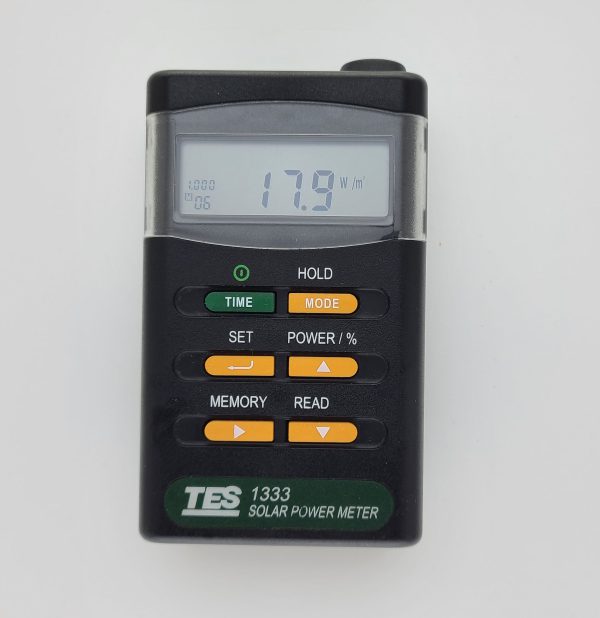

ES-1333 Cell Energy Software/Teste
Wide spectral range.
Excellent long term stability.
Cosine corrected.
Automatic transmission measurements.
Select either power or transmission.
Solar energy power or transmission.
Current time setting function.
User calibration factor setting function.

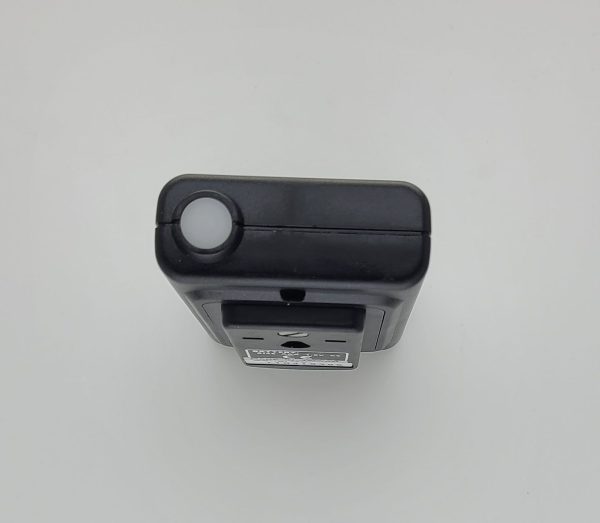

End-mount light sensor.
Select either W/m2 or Btu / (ft2*h) units
Data Hold / MAX / AVG modes.
Data Memory and Read function. (99 sets.)
Auto Data memory (TES-1333)
|
Display |
3-1/2 digits.Max.indication1999 |
|
Range |
2000W/m 2 ,634Btu/(ft 2 * h) |
|
Resolution |
1W/m2,1Btu/(ft2*h) |
|
Spectral response |
400-1100nm |
|
Accuracy |
Typically within ± 10W/m2[ ±3 Btu / (ft2*h) ] or ±5% , whichever is greater in sunlight; Additional temperature induced error ±0.38W/m2 / ℃ [ ±0.12 Btu / (ft2*h)/ ℃] from 25℃ |
|
Angular accuracy |
Cosine corrected <5% for angles <60 ° |
|
Drift |
<±2% / per year |
|
Calibration |
User recalibration available |
|
Over-input |
Display shows” |
|
Sampling Time |
Approx. 0.4 second |
|
Manu data memory and read |
99 sets |
|
Auto data memory |
— |
|

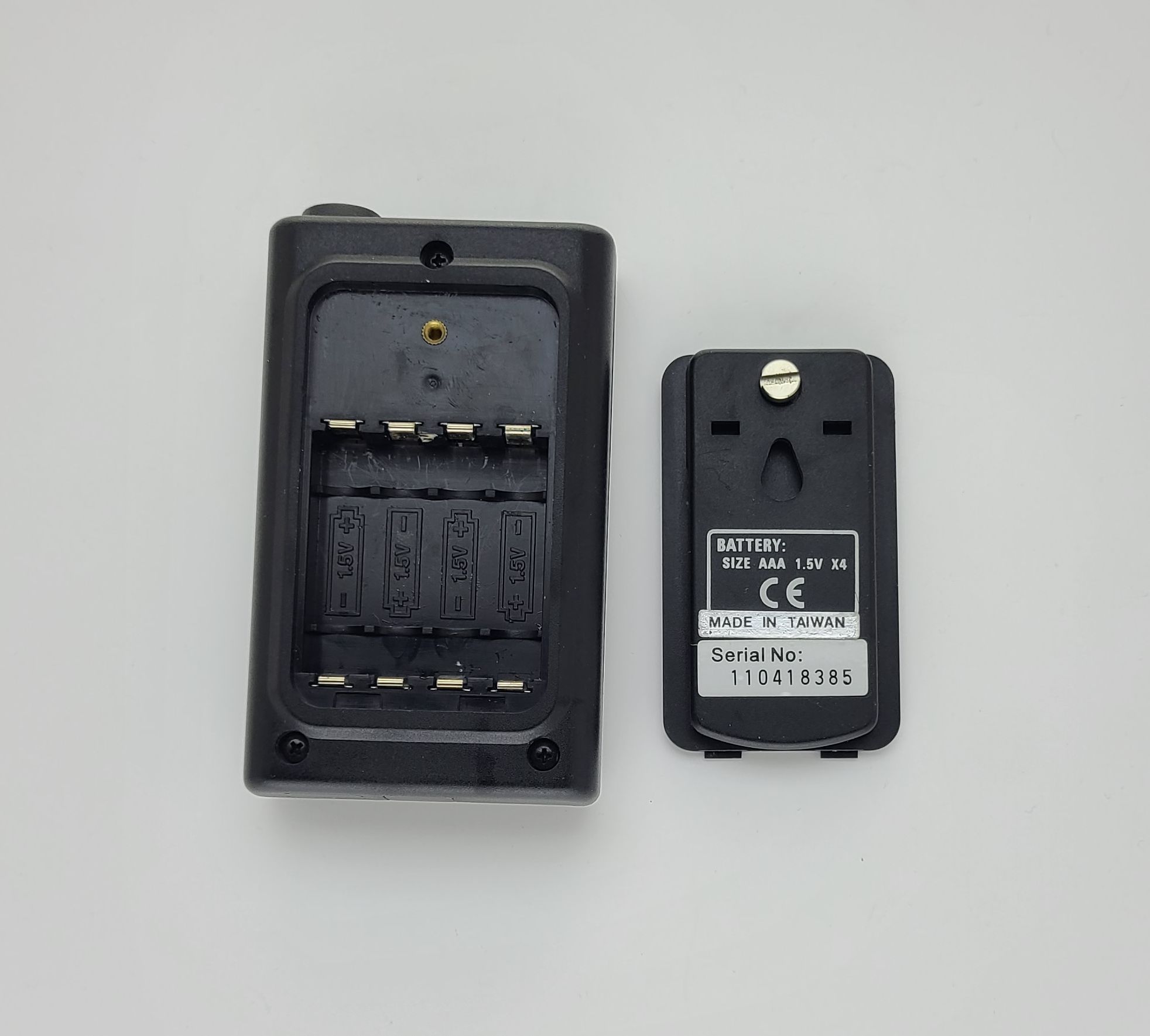

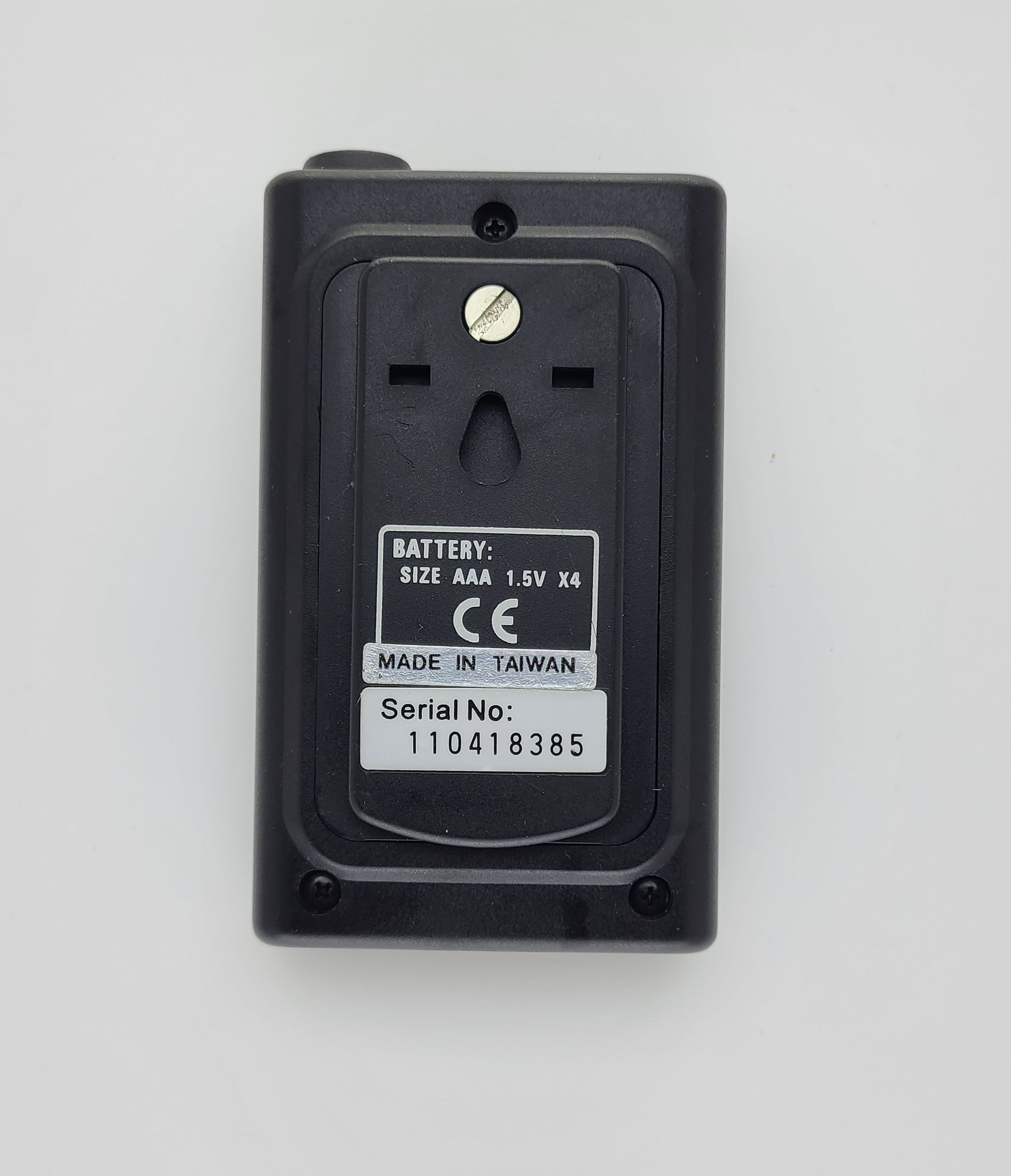

Battery |
4pcs size AAA |
|
Battery Life |
Approx. 100 hours |
|
Operating temp and humidity |
0 ℃ to 50 ℃below 80%RH |
|
Storage temp and Humidity |
-10 ℃ to 60 ℃ below 70% RH |
|
Weight |
Approx. 165g |
|
Dimension |
111(L)*64(W)*34(H)mm |
|
Accessories |
TES-1333 Main Unit,Carrying Case,Operation Manual |
“
