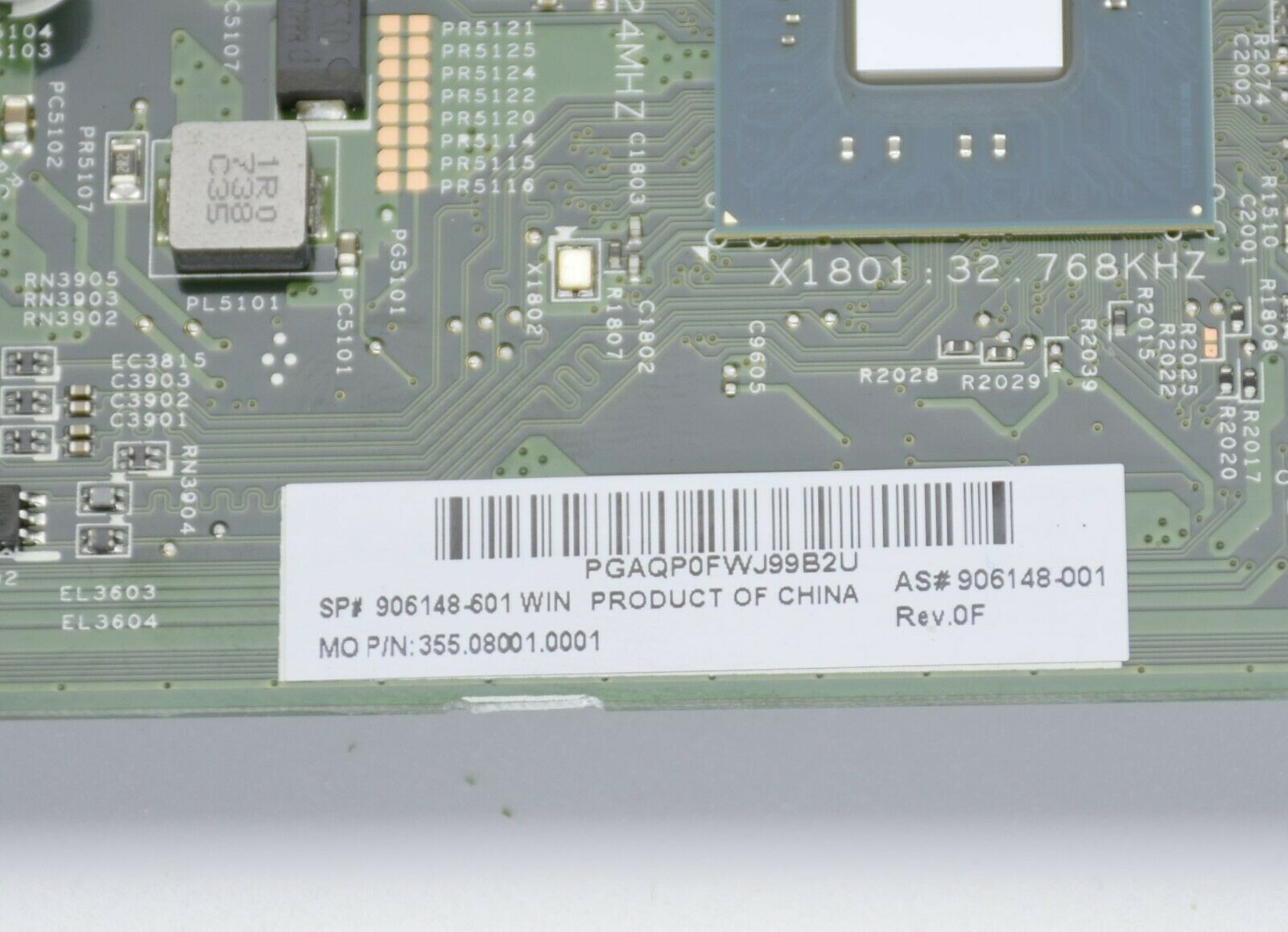

Name: HP 270 HP 570 P/N 906148-001 906148-601 Intel LGA1151 Motherboard. TESTED
SKU: 1791
Availability: OutOfStock

Description

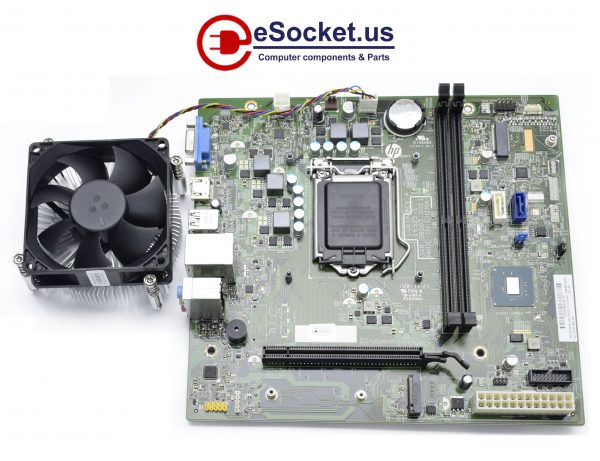

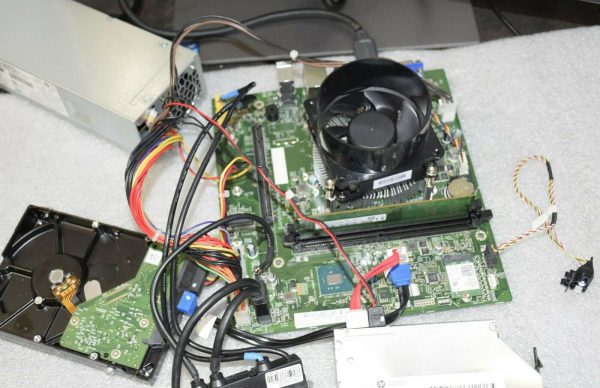

HP 270 HP 570 P/N 906148-001 906148-601 Intel LGA1151 Desktop Motherboard. TESTED

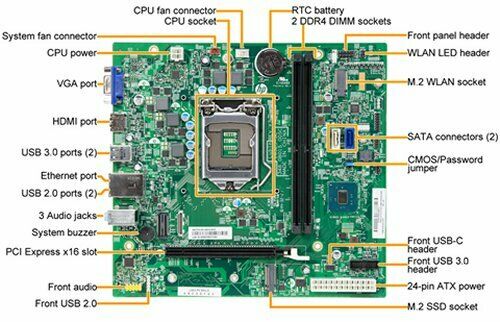

HP Desktop PCs – motherboard specifications, Lubin

Motherboard description

HP name: Lubin
SSID: 82F2

Form Factor

Customized
Dimensions: 20.5×22.0 cm (8.1×8.7 in)

Chipset

Processor upgrade information

TDP: Up to 65 W
Socket type: LGA 1151

Motherboard supports the following processor upgrades:

Processor	TDP	Integrated Graphics
Intel Core i7-7700T (Kabylake) 2.9 GHz Quad Core (only with Slimline chassis)	35 W	Intel HD Graphics 630
Intel Core i7-7700 (Kabylake) 3.6 GHz Quad Core	65 W	Intel HD Graphics 630
Intel Core i5-7400T (Kabylake) 2.4 GHz Quad Core (only with Slimline chassis)	35 W	Intel HD Graphics 630
Intel Core i5-7400 (Kabylake) 3.0 GHz Quad Core	65 W	Intel HD Graphics 630
Intel Core i3-7100T (Kabylake) 3.4 GHz Dual Core (only with Slimline chassis)	35 W	Intel HD Graphics 630
Intel Core i3-7100 (Kabylake) 3.9 GHz Dual Core	51 W	Intel HD Graphics 630
Intel Pentium G4560T (Kabylake) 2.9 GHz Dual Core (only with Slimline chassis)	35 W	Intel HD Graphics 610
Intel Pentium G4560 (Kabylake) 3.5 GHz Dual Core	54 W	Intel HD Graphics 610
Intel Celeron G3930 (Kabylake) 2.9 GHz Dual Core	51 W	Intel HD Graphics 610
Intel Core i3-6100 (Skylake) 3.7 GHz Dual Core	51 W	Intel HD Graphics 530
Intel Pentium G4400 (Skylake) 3.3 GHz Dual Core	54 W	Intel HD Graphics 510
Intel Celeron G3900 (Skylake) 2.8 GHz Dual Core	65 W	Intel HD Graphics 510

Memory upgrade information

Dual channel memory architecture
Two DDR4 UDIMM (288-pin) sockets
Supports up to PC4-19200 (DDR4-2400)
Supports 2 GB, 4 GB, and 8 GB UDIMMs
Supports up to 4 GB on 32-bit systems

NOTE:

32-bit systems cannot address a full 4.0 GB of memory.
Supports up to 16 GB (unbuffered) on 64-bit computers

NOTE:

Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.

Video

Integrated graphics

Integrated Intel HD Graphics

NOTE:

Integrated video is not available if a graphics card is installed.

Audio

Integrated audio

Audio Codec: ALC3863-CG
High Definition (Azalia) 5.1 channel audio support

NOTE:

The motherboard supports 5.1 surround sound. If the computer does not have the required audio jacks for a 5.1 configuration, additional hardware is required to use 5.1 surround sound.
Audio jack presence detection

NOTE:

An internal speaker is not included with integrated audio. External speakers or headphones are required to hear sound.

NOTE:

Integrated audio is not available if a sound card is installed.

Network

LAN: 1000BASE-T

Technology: Realtek RTL8161
Data transfer speeds: up to 10/100/1000 Mb/s
Transmission standards: 1000BASE-T Ethernet

Expansion Slots

One PCI Express x16
One M.2 socket 1, key A
One M.2 socket 3, key M

I/O Ports and Jumpers

Back I/O ports

NOTE:

This is the configuration as shipped. Any modifications or upgrades might change the configuration, port accessibility, and port functionality.

Jumpers

Clear Password: Remove the jumper from its default position and start the computer.

Clear CMOS: Move jumper one spot down (when oriented with SW_CMOS to the left of the pin block) and start the computer.

NOTE:

Clearing the CMOS also clears the password.

Figure : Clear CMOS and clear password jumper in the default position

Additional information

Weight	3.62 lbs
Dimensions	12 × 12 × 4 in
Compatible CPU Brand	Intel
Socket Type	LGA 1151
Memory Type	DDR4 SDRAM
Brand	HP

Condition	Seller refurbished

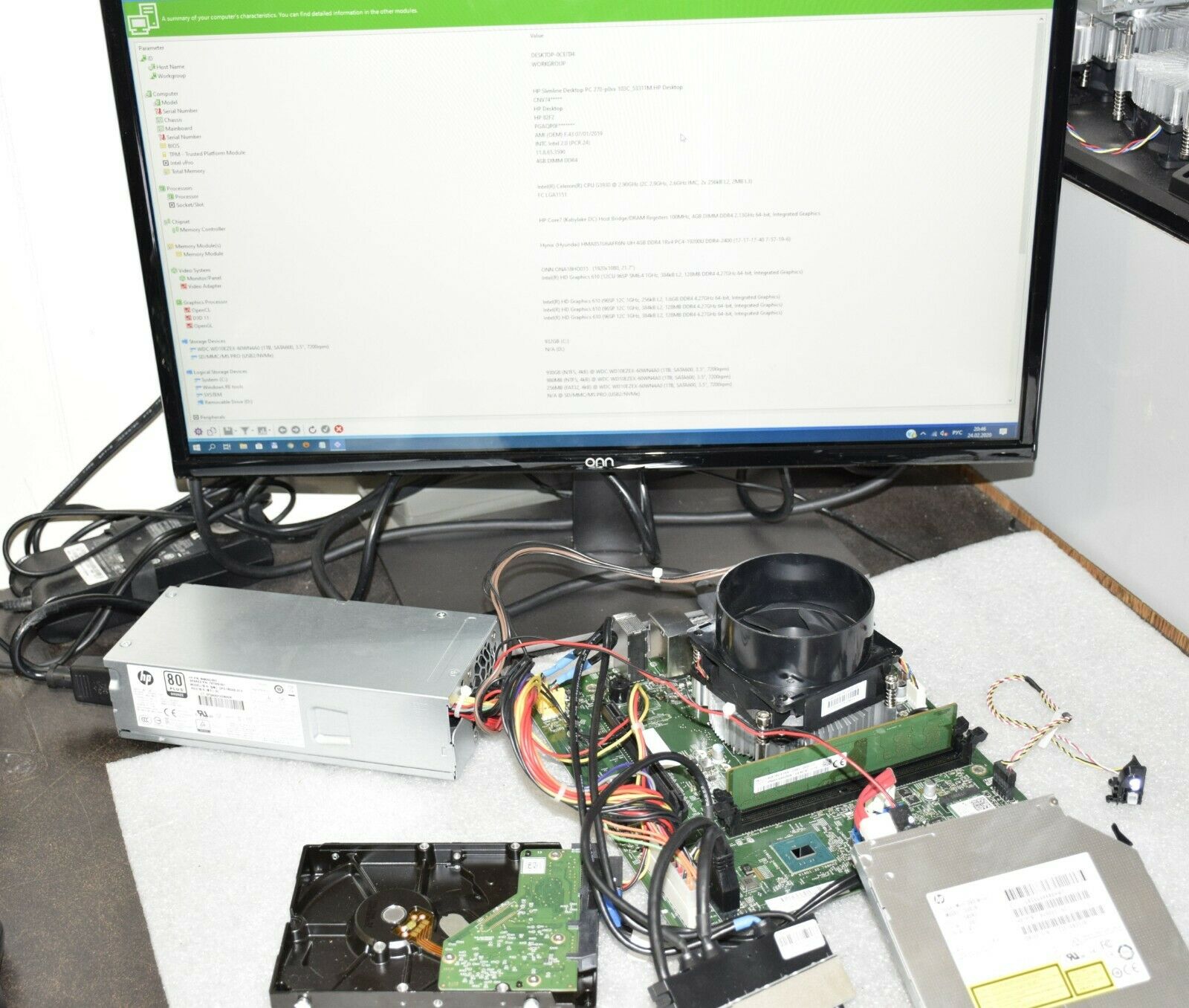

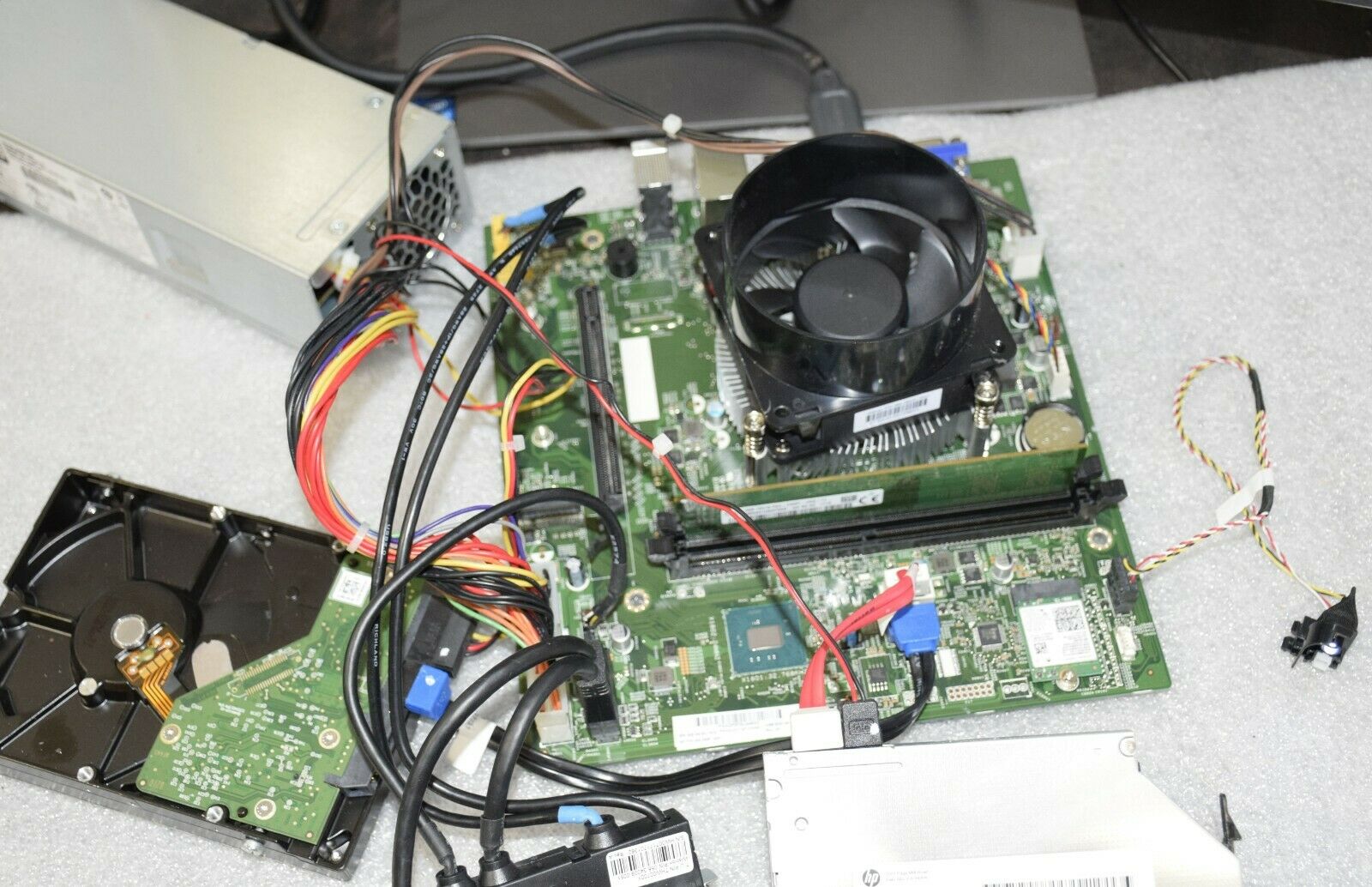

Notes	All motherboards undergo complete diagnostics and testing
