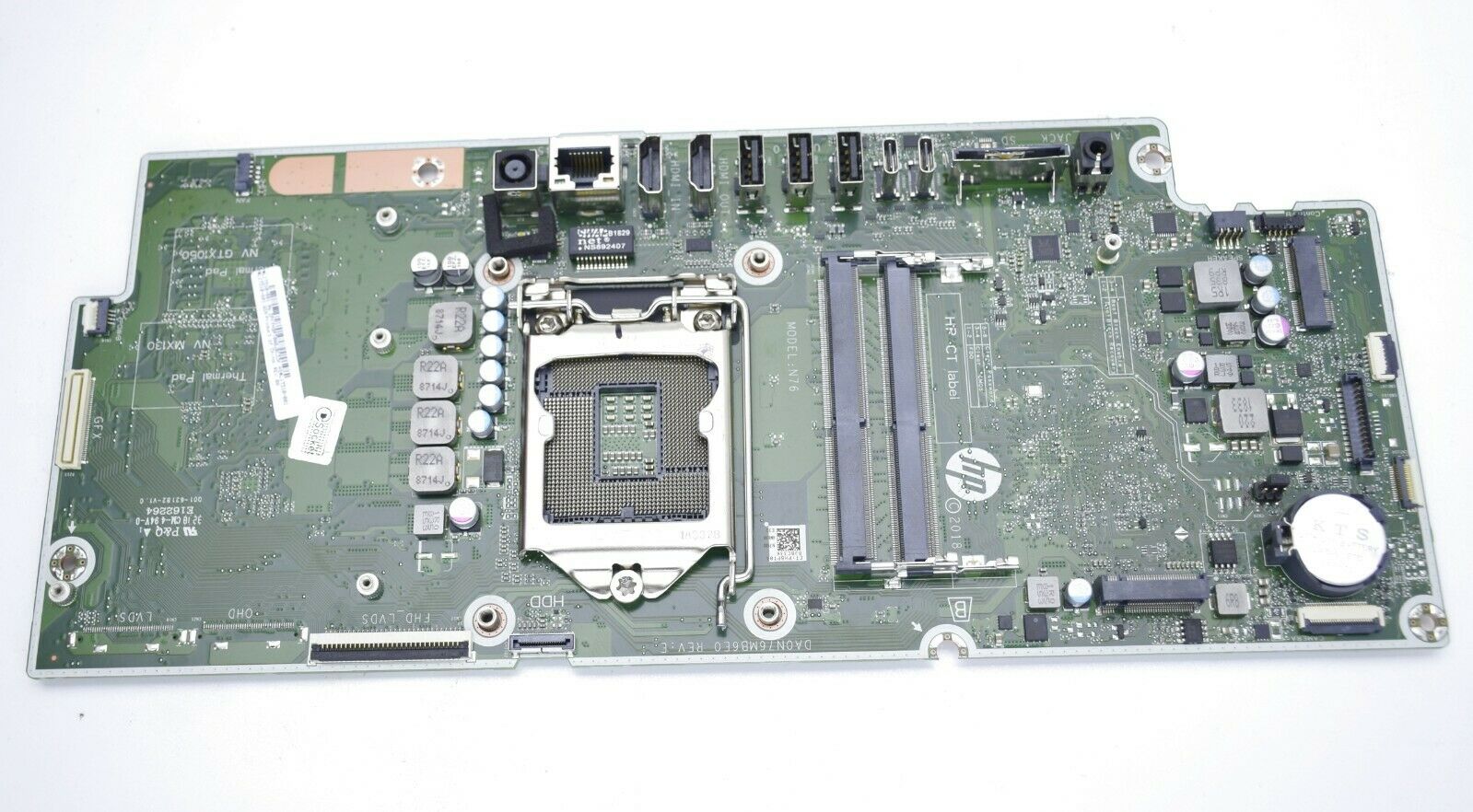

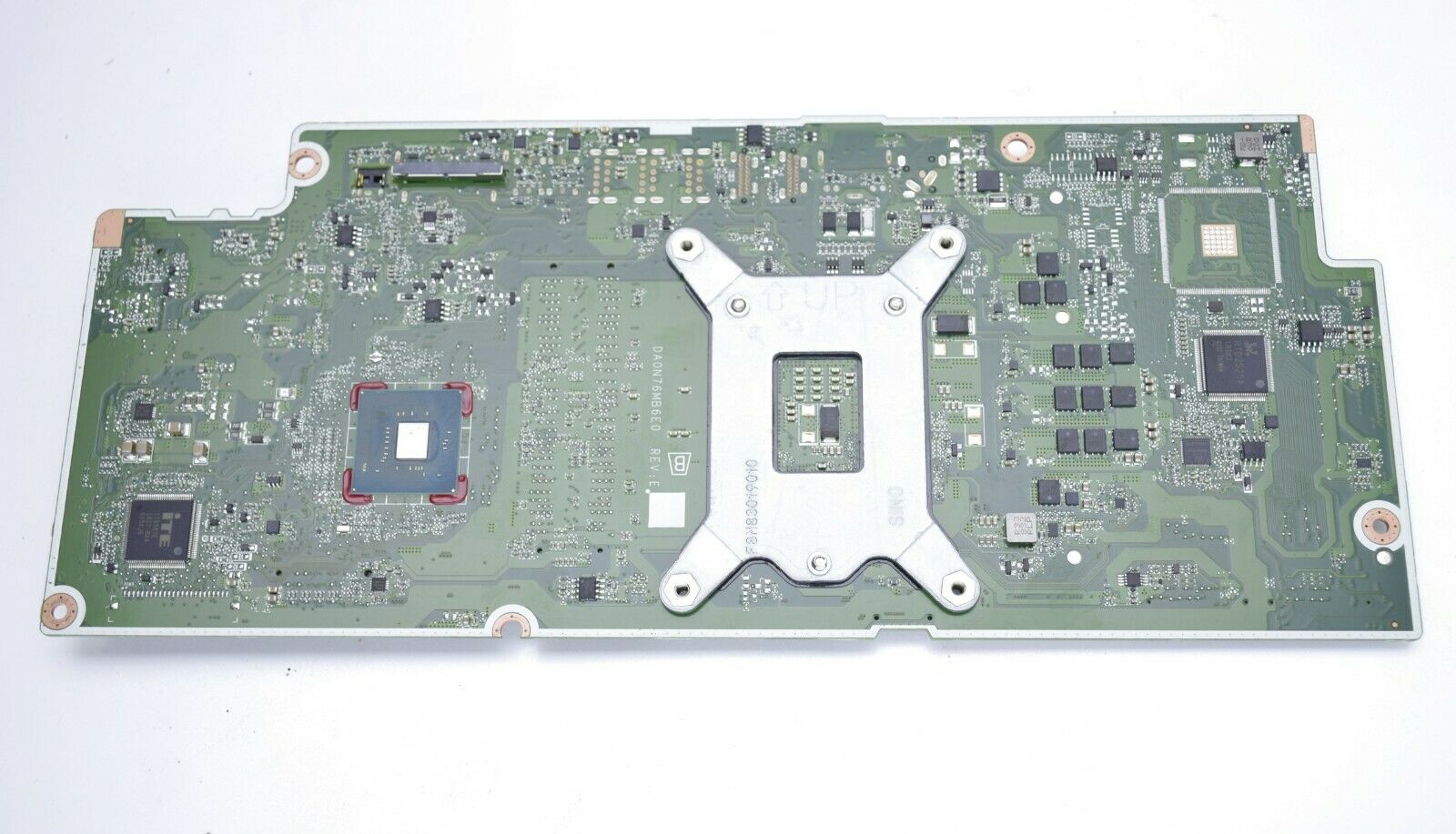

HP 24-XA0053W 24-x AIO AllinOne Motherboard DA076MB6E0 L17310-601 L173310-001 35. TESTED WORKING. Motheboard removed from new computer with cracked screen.
HP Desktop PCs – Motherboard Specifications, Diamaster
Motherboard description
-
HP name: Diamaster
-
SSID: 84EE
Form factor
-
Customized: 12.7 x 30.2 cm (5.0 x 11.89 in)
Chipset
-
Intel H370
Processor upgrade information
-
TDP: 35 W
-

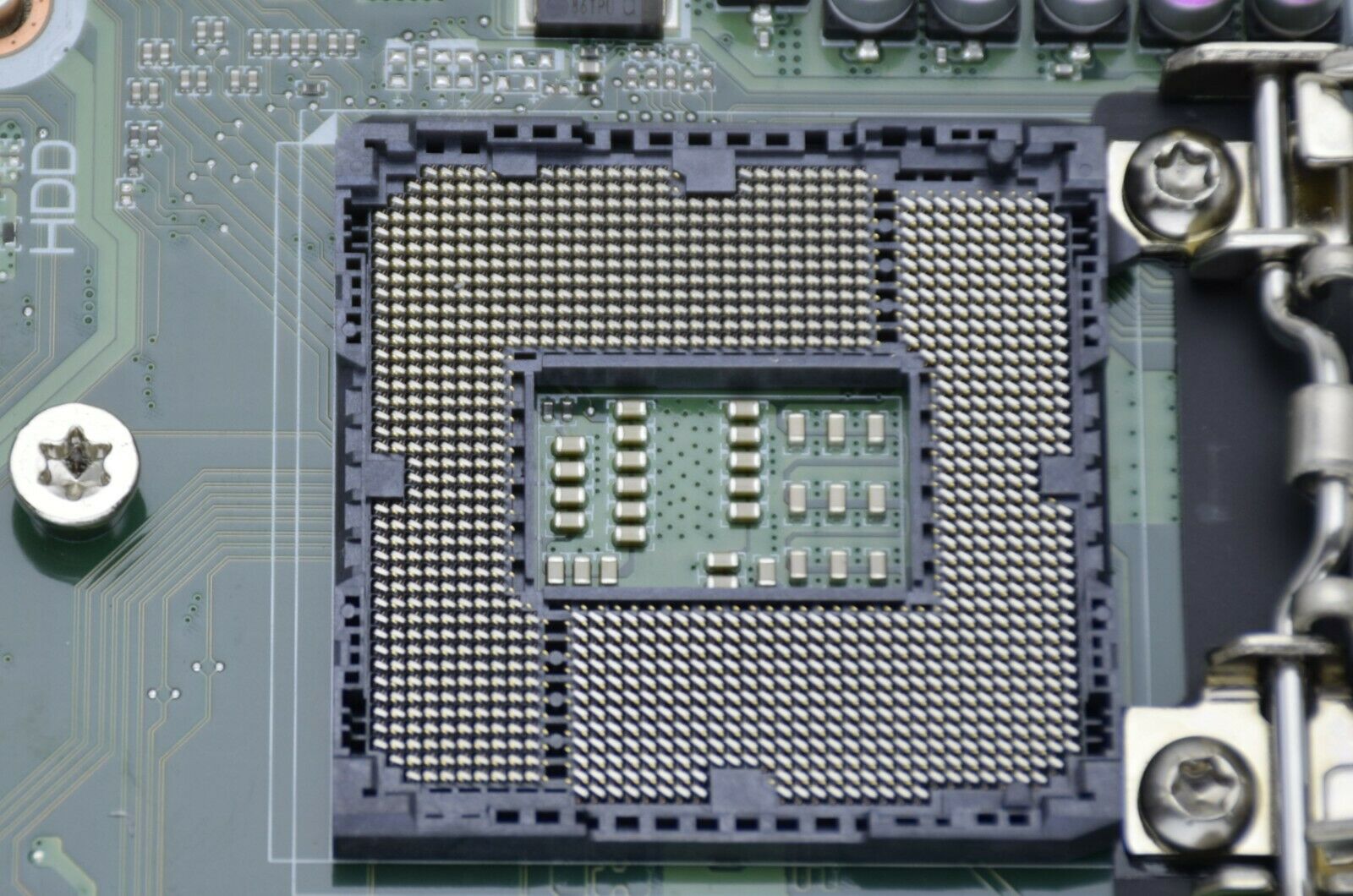

Socket type: LGA 1151
-
Motherboard supports the following processor upgrades:ProcessorTDPIntel Core i7-8700T (Coffee Lake) 2.4 GHz, 12 MB, Hexa Core, up to 4.0 GHz burst frequency35 WIntel Core i7+ 8700T (Core i7 and 16 GB Intel Optane memory) 2.4 GHz, 12 MB, Hexa Core, up to 4.0 GHz burst frequency35 WIntel Core i5-8400T (Coffee Lake) 1.7 GHz, 9 MB, Hexa Core, up to 3.3 GHz with Intel Turbo Boost Technology35 WIntel Core i5+ 8400T (Core i5 and 16 GB Intel Optane memory) 1.7 GHz, 9 MB, Hexa Core, up to 3.3 GHz with Intel Turbo Boost Technology35 WIntel Core i3-8100T (Coffee Lake) 3.1 GHz, 6 MB, Quad Core35 WIntel Pentium Gold G5400T (Coffee Lake) 3.1 GHz, 4 MB, Dual Core35 W
Memory upgrade information
-
Dual channel memory architecture
-
Two DDR4 SODIMM (260-pin) sockets
-
Supports up to PC4-19200 (DDR4-2400)
-
Supports 2 GB, 4 GB, and 8 GB DDR4 SODIMMs
-
Supports up to 4 GB on 32-bit systems
NOTE:
32-bit systems cannot address a full 4.0 GB of memory. -
Supports up to 16 GB (unbuffered) with 8 GB DIMMs on 64-bit systems
NOTE:
Maximum memory shown reflects the capability of the hardware and can be limited further in the operating system.
Video
Integrated graphics
-
Integrated Intel UHD Graphics
NOTE:
Integrated video is not available if a graphics card is installed.
Audio
Integrated audio
-
Audio Codec: Realtek ALC3259
-
Audio jack presence detection
Network
LAN: 1000BASE-T
-
Technology: Realtek RTL8111HSH
-
Data transfer speeds: up to 10/100/1000 Mb/s
-
Transmission standards: 1000BASE-T Gigabit Ethernet
Expansion slots
NOTE:
The configuration might vary depending on your model.
-
One M.2 socket 1, 2230 type for WLAN
-
One M.2 socket 3, 2280 type for SSD
I/O Ports and clear CMOS and password
Back I/O ports
-
DC Power input: 1
-
RJ-45 connector: 1
-
HDMI in: 1
-
HDMI out: 1
-
USB 3.0 port: 3
-
USB 3.1 Type-C port: 2
-
SD card reader: 1
-
Audio jack: 1
Clear CMOS and jumpers
-
Jumpers
-
CMOS reset button
.
