GOLDEN ENGINEERING XR200 X-RAY SOURCE FOR SAIC RTR-4

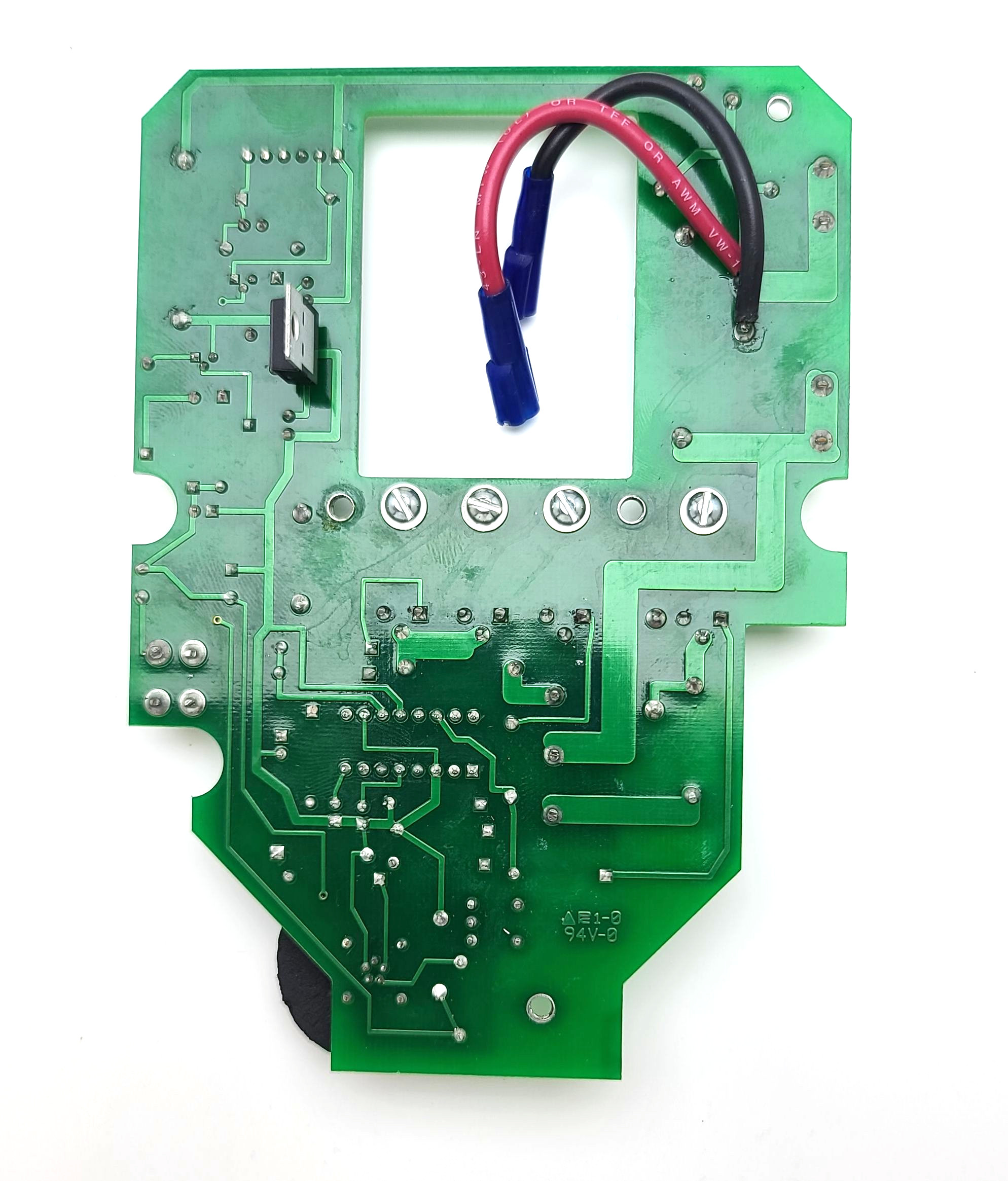

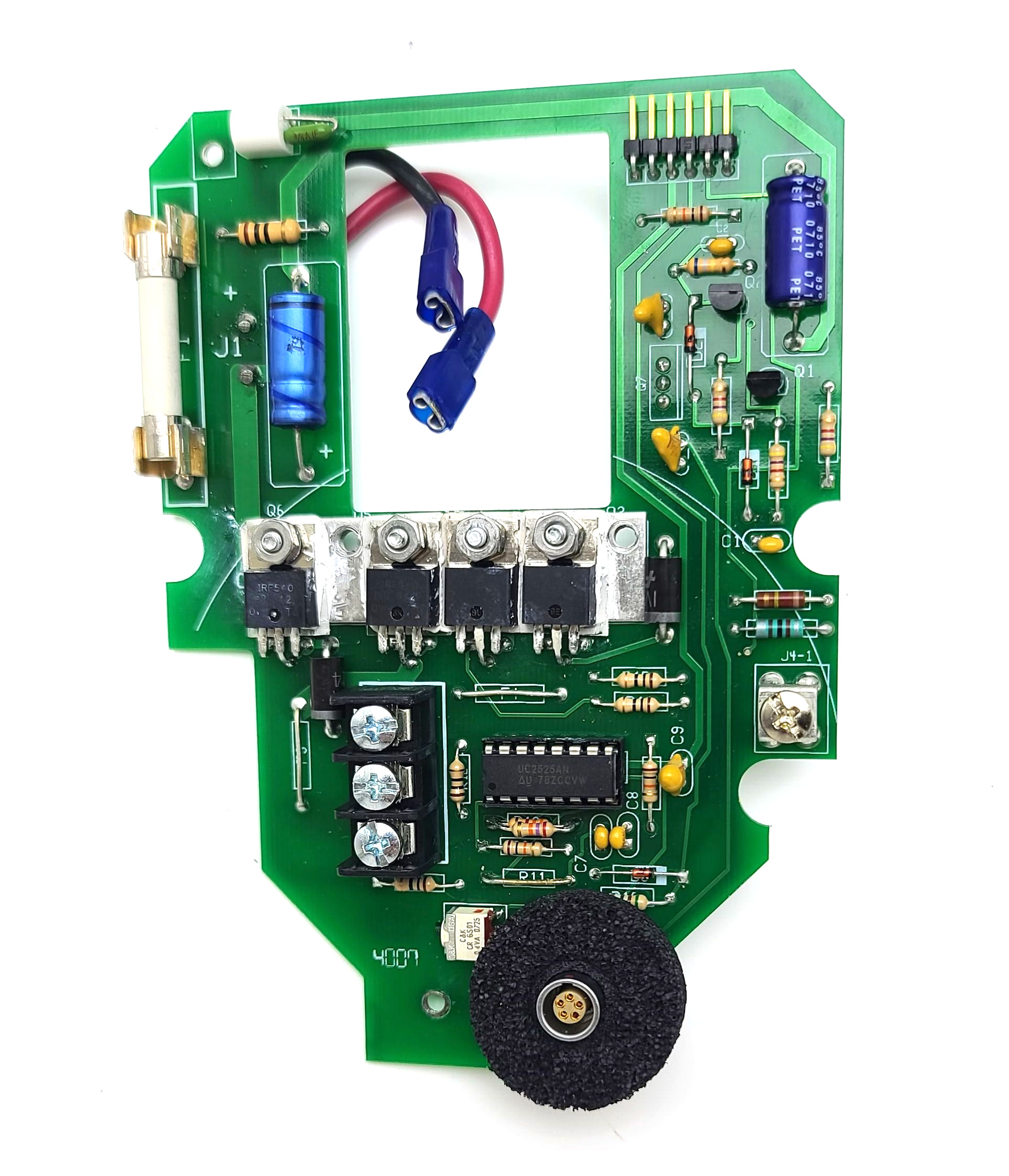

GOLDEN ENGINEERING XR200 X-RAY 14.4 volts Oscillator Board TESTED

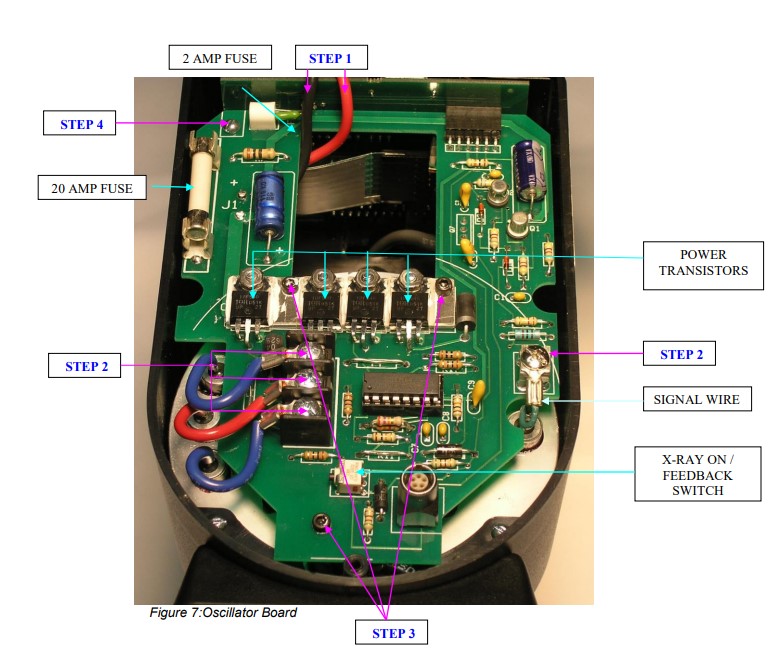

BOARD INSTALLATION
1. Slide counter board back into the top of the Control module housing just below the screw
receptacles.
2. Push the counter board up so LED goes through the appropriate hole in the control module
housing.
3. Connect the three white and one black connector.
4. Screw the LED cover back on.
5. Put the three cap screws through the oscillator board and then put the ½” offsets on the back of
the screws.
6. Plug the oscillator board back into the counter board and push it in position.
7. Tighten the three screws holding the board in place.
8. Insert the flat head screw in upper left corner of the Oscillator board.
9. Attach the two blue wires, one red wire, and green signal line.
10. Reinstall the back plate.
